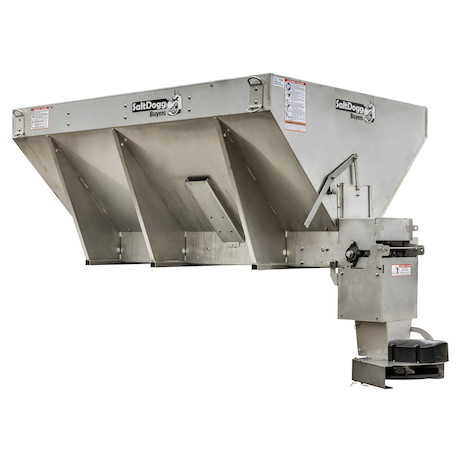

SaltDogg™ 3.5-5 Cubic Yard Electric Conveyor Chain Spreader
1793 MFG #: SaltDogg
- Designed for dump bodies and flatbeds with a minimum 17,500 or 15,000 lb GVW (depending on model).
- Available with 96 in., 108 in., or 120 in. hoppers with a capacity from 3.5 to 5 cubic yards.
- Powered by two independent electric motors for conveyor and spinner.
- Spreads bulk salt, bulk sand, or a salt/sand mix.
- Versatile 14-1/2 in. chain conveyor drive with a stainless steel inverted V to improve flow and reduce stress on the drive line.
- 18 in. poly spinner broadcasts up to 30 ft, using a regular or extended chute.
- Two chute baffles allow you to adjust the spread pattern to your use.
- In-cab controls with independent variable speeds for the conveyor and spinner.
- High quality, 304 stainless steel construction for optimum corrosion resistance.
- Stainless steel inverted V improves flow and reduce stress on the drive line.
- Four hinged top screen with 1/4 in. bars included.
- Made in the USA.
- Buyers Products SaltDogg 3.5-5 Cubic Yard Electric Conveyor Chain Spreader gives contractors and municipalities a heavy duty electric spreader ready for commercial use. The 96 in., 108 in., or 120 in. hoppers are designed for dump bodies and flatbeds with a minimum 17,500 or 15,000 lb GVW (gross vehicle weight) chassis (depending on model chosen). The spreader strikes a balance between the convenience and value of an electric spreader and the robust volume traditionally found in gas and hydraulic spreaders.
A SaltDogg stainless spreader is an investment made to last, with features that will get the job done. Its hopper and fully welded frame are made from high quality 304 stainless steel for long lasting corrosion protection. The hopper also comes outfitted with a top screen. The spreader is equipped with a steel pintle chain conveyor and features a stainless steel inverted V to reduce stress on the drive line and improve flow. The high-flow conveyor is 14-1/2 in. wide with 1/4 in. crossbars, and has a stainless steel floor. An adjustable feedgate with lock pin offers additional material flow control. The spinner is powered by a 1/2 HP, 12V motor, and the conveyor chain is powered by a 3/4 HP, 12V motor.
The spreader's 18 in. poly spinner casts material 2 ft to 30 ft, and the spreader itself is available with a regular or extended chute. Two adjustable baffles allow you to cater the spread pattern to your use. The chute and spinner assembly flips up or detaches completely, tool-free, for convenient bulk unload, easy servicing, and access to towing.
The spreader is controlled by a heavy duty, in-cab controller with independent variable speeds for the conveyor and spinner. It also comes outfitted with four hinged-top screens with 1/4 in. bars.
